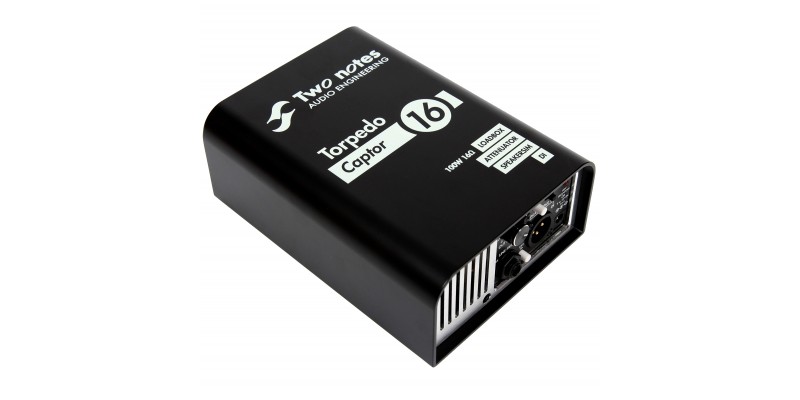

Two Notes Torpedo Captor 16 Ohm

RRP: £209.00

£172.99

Two Notes Torpedo Captor 16 Ohm

Estimated Shipping Cost -
Free
In Stock In Store - Ships immediately

SKU: TNCAPTOR16

The Torpedo Captor 16 is an easy-to-use 16 Ohm reactive Loadbox, perfect for unleashing your favourite tube amp in a variety of modern applications and venues. Designed to be placed between your amp head and speaker cabinet, it acts as a power attenuator and cabinet simulator, all packaged in a super-convenient DI-sized enclosure. The Torpedo Captor 16 is now available from Merchant City Music, online and in our Glasgow store. We ship fast to the UK, Europe and worldwide.

Two Notes Torpedo Captor 16 Ohm

The Torpedo Captor 16 is an easy-to-use reactive Loadbox, perfect for unleashing your favourite tube amp in a variety of modern applications and venues. Designed to be placed between your amp head and speaker cabinet, it acts as a power attenuator and cabinet simulator, all packaged in a super-convenient DI-sized enclosure. Featuring a superior arsenal of connectivity options as well as the GENOME plug-in software, complete with 16 stand-out virtual cabinets to choose from, the Torpedo Captor 16 allows you to use your amp at full potential at home, in the studio, or live.

  • Premium, compact 100W reactive load box - 16-Ohm Variant
  • Attenuator, silent stage solution for guitar and bass
  • 16 DynIR virtual cabinets via Torpedo Wall of Sound plug-in (included)
  • Built-in analog cab sim x 2, individually voiced for guitar and bass
  • Ground lift, phase reversal switch
  • Robust yet lightweight - perfect for home, studio or live (gig bag friendly)
  • Includes GENOME software complete with 5 DynIR Captures, 40 Microphones, 12 PEDALS, 12 TSM Amplifiers, 17 STUDIO FX, 40 AI Amp Captures and an expertly curated RIG library for immediate creative potential from the get go!

Product Details

Input / Output

  • Speaker Input: 1/4” Jack unbalanced (TS)
  • Speaker Attenuated Output: 1/4" Jack unbalanced (TS); Attenuation -20dB
  • Speaker Thru: 1/4" Jack unbalanced (TS) - Directly connected to Speaker Input - Loadbox disconnected when in use
  • Line Output: 1/4" Jack balanced (TRS) - Impedance 1000 Ohms - Phase switch - Ground lift (Without speaker simulation)
  • DI Output: XLR balanced; Impedance 600 Ohms (With or without speaker simulation)
  • Analogue speaker sim: Guitar - based on Brit VintC DynIR Cabinet – Dyn57 Microphone; Bass - based on Fridge DynIR Cabinet – Cnd87 Microphone

Reactive Load Box

  • Impedance 16 Ohms
  • Max admissible power: 100W RMS
  • Safety system: Temperature-controlled fan; Active thermal safety

Power

  • Input voltage Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center
  • Current draw: 5mA
  • Power input connector: DC connector, 2.1mm x 5.5mm, center negative

Dimensions & weight

  • Width x Depth x Height 12.6cm x 17.5cm x 6.2cm – 4.9” x 6.7” x 2.4” Including connectors and knobs)
  • Weight: 1000 g / 2.2 lbs
