SKU: US-16X08
Calculate your finance...

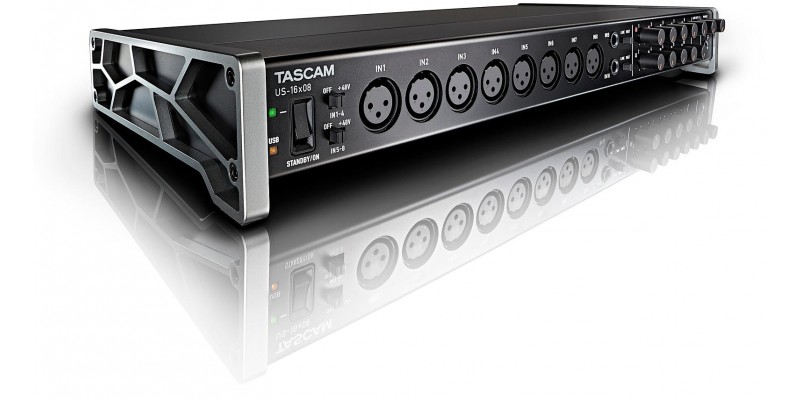

The TASCAM US-16X08 is a USB/MIDI Audio interface. It offers serious power at an amazing price. A quick review of the features will tell you get a top specification. Amazing for studio and home recording work. Available to buy online and in our Glasgow shop. Fast delivery to the UK and Europe.
The TASCAM US-16x08 USB Audio interface comes with sixteen mic/line inputs.
This Audio/Midi interface will let you connect up to 16 microphones or line ins at the same time. An amazing amount considering how much the TASCAM US-16x08 cost. Also included are 8 ultra high quality Mic Pre-Amps. They are super clean and deliver up to 56dB of gain. More guitar specific options are also available. Amp Simulator Software lets you get a great sound recording directly in. With many inputs it makes recording a drum kit properly possible. A standard USB 2.0 connection works with your computer. An Advanced DSP mixer gives you 4 band EQ on each channel as well as compression. A nice physical design feature is the angled front. Rather than sitting flush to the desk it angles up for easier access. The metal body if durable too. Although the Tascam US-16x08 interface works with Mac and PC there is also connectivity for iOS devices.
Product Details
- Product Code: US-16X08
- Sampling frequency: 44.1k/48k/88.2k/96kHz
- Quantization bit rate: 16/24bit
- Analog audio inputs:
- MIC IN(IN 1-8)
- Connector: XLR-3-31(1GND, 2: HOT, 3COLD), BALANCED:
- Input impedance: 2.4k ohms
- Nominal input level
- GAIN: MAX -68dBu (0.0003Vrms):
- GAIN: MIN -12dBu (0.195Vrms):
- Maximum input level: +8dBu (1.947Vrms)
- Gain: 56dB
- INST IN (IN 9-10)
- Connector: 6.3mm(1/4") TS-jack(THOT, S: GND), UNBALANCED (When set to "INST" at LINE/INST switch)
- Input impedance: 1M ohms or more
- Nominal input level
- GAIN: MAX -57dBV (0.0014Vrms):
- GAIN: MIN -12dBV (0.251Vrms):
- Maximum input level: +8dBV (0.2512Vrms)
- Gain: 45dB
- LINE IN (IN 9-10)
- Connector: 6.3mm(1/4") TRS-jack(THOT, R: COLD, SGND), BALANCED (When set to "LINE" at LINE/INST switch):
- Input impedance: 10k ohms
- Nominal input level
- GAIN: MAX -41dBu (0.0069Vrms):
- GAIN: MIN +4dBu (1.228Vrms):
- Maximum input level: +24dBu (12.182Vrms)
- Gain: 45dB
- LINE IN (IN 11-16)
- Connector: 6.3mm(1/4") TS-jack(THOT, S: GND), UNBALANCED (When set to "-10dBV" at LEVEL switch)
- Input impedance: 10k ohms or more
- Nominal input level: -10dBV (0.3162Vrms)
- Maximum input level: +10dBV (3.162Vrms)
- LINE IN (IN 11-16)
- Connector: 6.3mm(1/4") TRS-jack(THOT, R: COLD, SGND), BALANCED (When set to "+4dBu" at LEVEL switch):
- Input impedance: 10k ohms
- Nominal input level: +4dBu (1.228Vrms)
- Maximum input level: +24dBu (12.182Vrms)
- Analogue audio outputs:
- LINE OUT (LINE OUT 1-8)
- Connector: 6.3mm(1/4") TRS-jack(THOT, R: COLD, SGND), BALANCED:
- Output impedance: 100ohms
- Nominal output level: +4dBu (1.228Vrms)
- Maximum output level: +24dBu (12.177Vrms)
- PHONES
- Connector: 6.3mm(1/4") stereo phone jack
- Maximum output level: 70mW+70mW or more (THD+N 0.1% or less, 32ohms loaded)
- MIDI IN / OUT
- Connector: Din 5-pin
- Format: Standard MIDI format
- USB
- Connector: USB B type 4-pin
- Format: USB2.0 HIGH SPEED mass storage class
- Power: Specialized AC adapter (GPE248-120200-Z)
- Power consumption: 12W
- Dimensions: 445 W ×59 H ×219 D mm
- Weight: 2.8kg / 6.11lb
- Operating temperature: 5 to 35°C
- Accessories: Rack mount adapter, USB cable, User's manual, warranty card, dedicated AC adapter (GPE248-120200-Z)
