SKU: 1611900-004

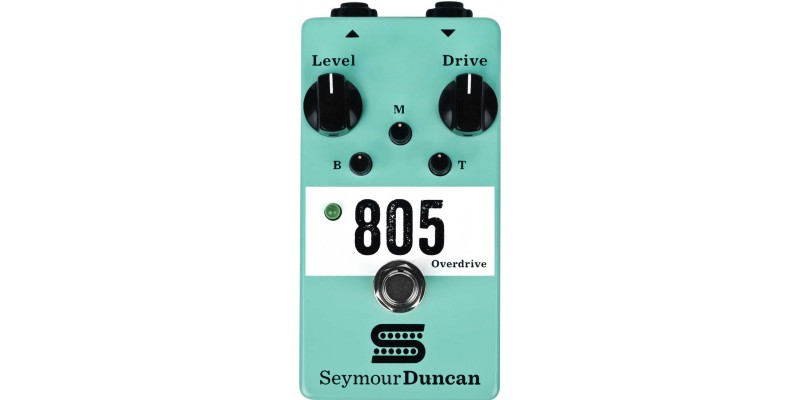

The Seymour Duncan 805 Overdrive is a high quality guitar pedal. It delivers classic tones using an 808 chip as a reference point. It is transparent and highly versatile. Buy online today from Merchant City Music. We offer a fast UK delivery service. Alternatively, come and see us in our Glasgow shop.
The Seymour Duncan 805 Overdrive Pedal is transparent and versatile.
This guitar pedal is true bypass with glass diode and back to back stack circuitry. The Seymour Duncan 805 contains the MC33178 chip. It has increased battery life and excellent tonal characteristics. A Three Band EQ makes this stand out from the competition. The real strength of this Overdrive though is its versatility. It will happily go from warm blues to metal crunch with a quick tweak. The Seymour Duncan 805 can also be used as a Boost to your guitar setup.
Product Details
- Product Code: 1611900-004
- Distortion Circuitry: Glass diode, back-to-back stack.
- Bypass: True bypass
- Gain Control Range: 8dB to 36dB.
- EQ Centre Frequencies: Bass - 90 Hz +/- 11dB, Mid - 750 Hz +/- 11dB, Treble - 2.1 kHz +/- 12dB
- Noise: Minimum gain, 20 to 20kHz - 112dBV, Minimum gain, 400 to 20kHz - 114dBV, Maximum gain, 20 to 20kHz - 97.5dBv, Maximum gain, 400 to 20kHz - 98 dBV
- THD @10mVrms input @ 1 kHz with 12 dB of gain: 0.15%
- Max Output before Saturation: 0.6Vrms
- Input Impedance: 470k Ohms
- Output Impedance: 1k Ohms
- Power: 9V battery or 9-18V Regulated DC Adapter (centre negative)
- Current consumption: 4.5mA
- Dimensions: 2.61” x 4.90” x 1.45”
- Weight: -90dBV at output, 400Hz to 20kHz
