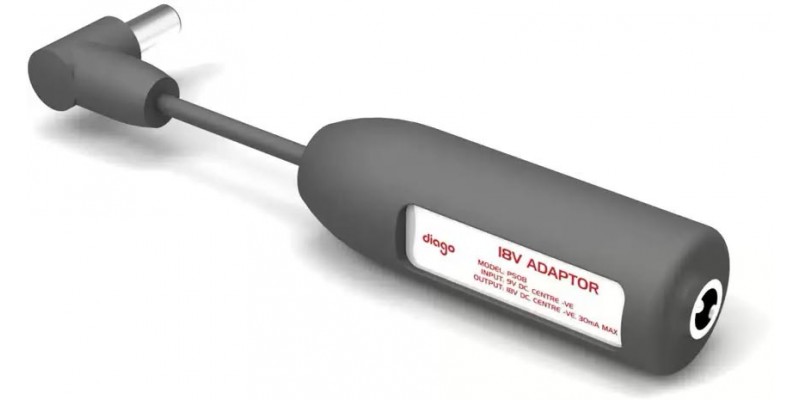

Diago PS08 18V Adaptor

The Diago 18V Adaptor doubles the 9V DC input to 18V DC on the output. Some power supply designs offer 18V by connecting two 9V outputs together using a special cable, but for this you need a power supply with isolated outputs. Since isolation is only needed occasionally (and when you do, you can use one of our Isolators), this is money wasted for most people. Furthermore, it uses two of your limited number of outputs.

Instead, we've made this specially designed 18V adaptor, that uses just one output, and will reliably power any 18V pedal with a current draw of up to 30mA.

Compatibility

The Diago 18V Adaptor will work with any 18V DC guitar effects pedal that draws 30mA of current or less. It follows the Boss plug convention of 2.1mm centre-negative barrel plugs, the same as ourPowerstation, Micropower9 & Deluxe Daisy Chain.

If you need a different plug type, you can use one of our coloured plug adaptors between the Isolator and your pedal.

Check our fairly comprehensive compatibility list to see whether any of your pedals require 18V, and whether their current requirements are below the 30mA limit of the 18V Adaptor. If you're unsure, do not hestitate to contact us.
