BOSS WL-20 Guitar Wireless System (Passive Pickups) WL-20 https://www.guitar.co.uk/media/catalog/product/b/o/boss-wl-20-guitar-wireless-system-main.jpg 761294512791 BOSS

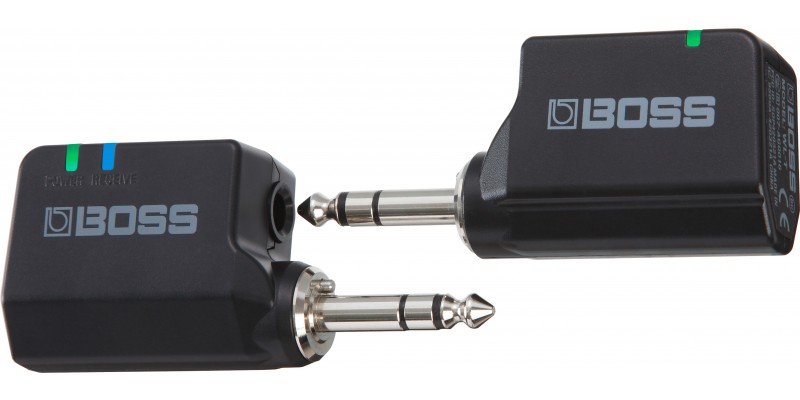

BOSS WL-20 Guitar Wireless System (Passive Pickups)

RRP: £189.00

£160.92

Boss-WL-20-Guitar-Wireless-System-Main

Estimated Shipping Cost -
Free
In Stock In Store - Ships immediately

SKU: WL-20

The BOSS WL-20 Guitar Wireless System makes it ultra-simple to go wireless with your guitar, bass or other electronic instrument. With built-in cable tone simulation, the WL-20 model is designed for any guitar which uses passive pickups. Built-in rechargeable batteries provide up to 12 hours of playing time, and are charged using the included micro USB cable. Now available from Merchant City Music, online and in our Glasgow store, visit us in the shop for a demo, or buy online for fast delivery to the UK, Europe, and beyond.

BOSS WL-20 Guitar Wireless System for instruments with passive pickups

Have you always dreamed about going wireless with your instrument, but were put off by the complicated setup, tone loss, and bulky adds-ons? If so, the WL-20 series is for you! Driven by new lightning-fast BOSS tech, these ultra-compact music tools deliver premium sound and plug-and-play operation that completely eliminates all the hassles normally associated with wireless systems.

Once you experience the easy wireless independence provided by the WL20 series, you’ll never go back to using a standard cable again! With no worries about cable management, you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.

Features:

  • Plug-and-play wireless systems for guitar, bass, and other electronic instruments
  • No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
  • Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and 50-foot/15-meter range (line-of-sight propagation)*
  • Built-in rechargeable batteries provide up to 12 hours of continuous playing time
  • Simple charging with a standard USB adaptor (5 V/500 mA or greater)
  • Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable

Product Details

SPECIFICATIONS (RECEIVER)

  • Wireless Format: BOSS proprietary digital audio format
  • Wireless carrier frequency: 2.4 GHz
  • Compatible Channels: 14 (May vary due to local conditions)
  • Transmission Range: 50 feet line-of-sight (May vary due to local conditions)
  • Latency: 2.3 ms
  • Dynamic Range: 110 dB or greater
  • Frequency Response: 20 Hz--20 kHz
  • Nominal Output Level: -10 dBu
  • Output Impedance: 1 k ohm
  • Recommended Load Impedance: 10 k ohms or greater
  • Indicators: POWER / RECEIVE
  • Connectors: 1/4-inch TRS phone type Output plug, 1/4-inch TRS phone type transmitter jack, USB Micro-B type DC IN 5 V port
  • Power Supply: Rechargeable lithium-ion battery, supplied from the DC IN 5 V port
  • Current Draw: 60 mA during wireless operation, 500mA while charging
  • Battery charging time: Approximately 3 hours charging only the receiver, Approximately 4 hours charging simultaneously with the transmitter
  • Expected battery life under continuous use: Approximately 10 hours * These figures will vary depending on the actual conditions of use.
  • Accessories: Transmitter, Owner's Manual, Leaflet USING THE UNIT SAFELY, Micro USB cable for charging (Use a standard USB AC adaptor (5 V/over 0.5 A) for charging)

SIZE AND WEIGHT (RECEIVER)

  • Width 87 mm (3-7/16 inches)
  • Depth: 25 mm (1 inches)
  • Height: 38 mm (1-1/2 inches)
  • Weight: 60 g (3 oz)

SPECIFICATIONS (TRANSMITTER (WL-T))

  • Nominal Input Level -10 dBu (1 M ohm)
  • Indicator: BATTERY
  • Connectors: 1/4-inch TRS phone type input plug, USB Micro-B type DC IN 5 V port
  • Power Supply: Rechargeable lithium-ion battery, supplied from the DC IN 5 V port
  • Current Draw: 350mA
  • Battery charging time: Approximately 3 hours
  • Expected battery life under continuous use: Approximately 12 hours * These figures will vary depending on the actual conditions of use

SIZE AND WEIGHT (TRANSMITTER (WL-T))

  • Width 87 mm (3-7/16 inches)
  • Depth: 22 mm (7/8 inches)
  • Height: 36 mm (1-7/16 inches)
  • Weight: 43 g (2 oz)
