BOSS DM-2W Waza Craft Delay Special Edition DM-2W https://www.guitar.co.uk/media/catalog/product/b/o/boss-dm-2w-waza-craft-delay-special-edition.jpg 761294506547 BOSS

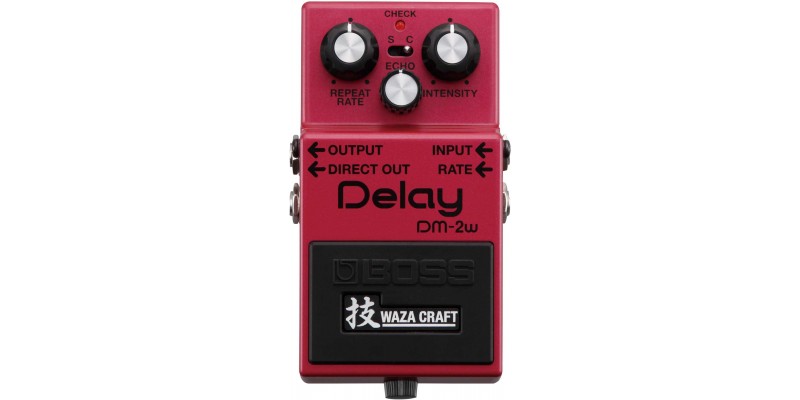

BOSS DM-2W Waza Craft Delay Special Edition

RRP: £185.00

£159.00

Boss DM-2W Waza Craft Delay Special Edition

Estimated Shipping Cost -
Free
On order with supplier

SKU: DM-2W

The Boss DM-1W Delay is a Custom Special Edition effects Pedal. Boss have finally reissued their classic DM-2 Delay Pedal. With a Standard and Custom mode this is a boutique style delay. At Guitar.co.uk you get a 5 Year warranty. Both in our Glasgow shop and on-line.

Custom Waza Craft Boss DM-2W Delay Pedal.

Discontinued in 1984 the original DM2 is now a big collectors delay pedal. The new Boss DM2W Delay Pedal features those original warm delay sounds. The original DM-2 featured that bucket brigade, analogue delay tone. This new Waza Craft version does all this and more. It features two different settings. Standard and Custom. Waza Craft is Japanese for Art and Technique. It is the Boss Pedals equivalent of their Custom shop. The Boss DM-2W Delay utilises a completely analogue circuit. The comparison between the Standard and Custom settings? Putting it into standard mode gives you the original 20-300 ms delay tone. The Custom mode delivers a more modern sound for added versatility. On top of that you can use the DM-2W with an expression pedal. This lets you control the delay time with your foot. On the side of the delay pedal there are two outputs. Delay and direct.

Product Details

  • Product Code: DM-2W
  • Nominal Input Level: -20 dBu
  • Input Impedance: 1 M ohm
  • Nominal Output Level: -20 dBu
  • Output Impedance: 1 k ohm
  • Recommended Load Impedance: 10 k ohms or greater
  • Controls: Pedal switch, Mode switch, Repeat Rate Knob, Intensity Knob, Echo Knob, Mode Switch
  • Indicator: CHECK indicator (Serves also as battery check indicator)
  • Connectors: Input Jack, Output Jack, Direct Out, Rate Jack, DC Jack (DC 9 V)
  • Current Draw: 15 mA
  • Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22), AC adaptor (sold separately)
  • Width: 73 mm
  • Depth: 129 mm
  • Height: 59 mm
  • Weight: 0.5 kg
