SKU: ZEPHYRZMX862

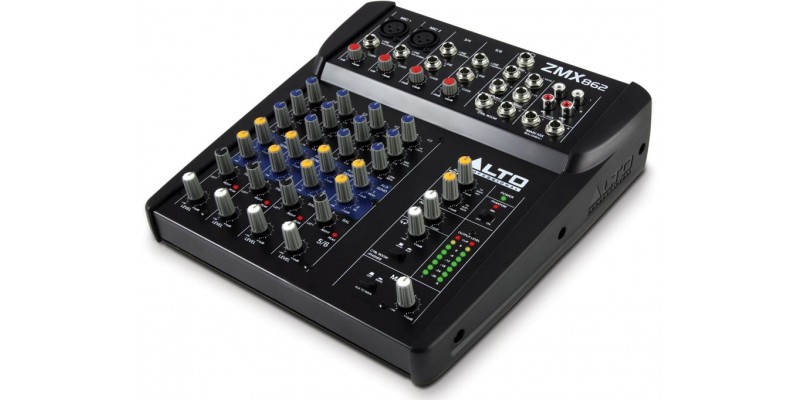

The Alto ZMX862 Zephyr is a 6 Channel Mixer for music. This Professional quality bit of kit lets you setup a small live outfit. Also great for home use and multimedia set ups. It is nice and compact too making it very portable. If you would like to take a closer look at one of these then why not visit our Glasgow shop if you can? Want to buy online? We offer a fast dispatch and delivery service throughout the UK.
The Alto ZMX865 has versatile Inputs and Outputs and a small footprint.
Need a handy mixer for live and home use? This Zephyr 6 Channel mixer should be on your list. The Alto ZMX865 includes two XLR Mic inputs. Both of these have Phantom Power. A three band EQ is also included on the ZMX 865. as well as two Aux Sends per channel. These could be used for monitoring purposes and effects. If you liked the ZMX52 but need just a little bit more then this could be what you need. You get more inputs. It also has an extra EQ band. This mixer will take a variety of microphones. This is a long with inputs for instruments. For example keyboards and acoustic guitars. It also makes a it easy to plug music through. The Alto ZMX865 also has low noise and high head room. LEDs, and brightly coloured knobs help you see the mixer in a darkened venue.
Product Details
- Product Code: ZEPHYR ZMX862
Mono channel (Ch. 1-2)
- Microphone Input Electronically balanced, discrete input configuration
- Frequency Response: 20 Hz to 22 kHz, +/-1 dB
- Distortion( THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: 0 dB to 50 dB (Mic)
- Maximum Voltage Gain: 70 dB Ch. Mic Input→Main MIx out & Tape out, 80 dB Ch. Mic input→Control room & Phones, 60 dB Ch. Mic input→Aux send
- SNR (Signal to Noise Rate): ≧110 dBu
- Phantom power (Mic Pin2/Pin3 and Pin1): +18 V
- Line Input: Electronically balanced
- Frequency Response: 20 Hz to 22 kHz, +/- 1 dB
- Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: 15 dBu to 30 dBu
Stereo channels (Ch. 3 - 6)
- Line Input Electronically balanced
- SNR (Signal to Noise Ratio): ≧110 dBu
- Frequency Response: 20 Hz to 22 kHz, +/- 1dB
- Distortion (THD&N): ≦0.005% at + 4 dBu, 1 kHz
- Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
- Maximum Voltage Gain: 20 dB FX return → Main Mix out, 20 dB RCA Tape input → Main Mix out
Impedance
- Microphone Input 3.9 kOhms
- All Other Input: 10 kOhms or Greater
- Tape Out: 1 kOhms
- All Other Outputs: 120 Ohms
Equalization
- Mono channels High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
- Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
Main Mix Section
- Tape, Aux, Phones Output
- Output level: 0 dBu Unbalanced, 1/4" jacks, Max out +22 dBu Unbalanced, 1/4" jacks noise (Bus Noise) ≦-90 dB @ 20 Hz - 22 kHz (channel & Main level at 0 dB, other at minimum, DSP mute):
Power and Dims
- Power Supply 18 V, 500 mA
- Rated Power Consumption: 18 W
- Dimensions (WxLxH) 202mm x 250mm x 58mm
- Weight: 3.75 lb
