SKU: ZEPHYRZMX122FX

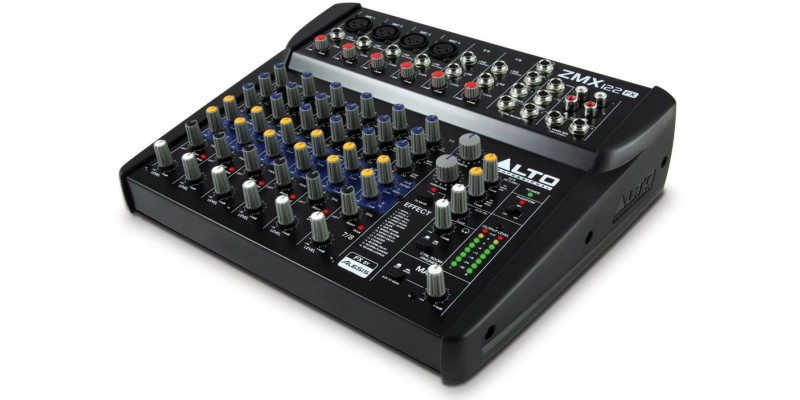

The Alto ZMX122FX Zephyr is an 8 Channel Mixer. Packed with features it is also excellent value for money. It has compact dimensions making it great for a small stage setup. Also great for home studios. Want to take a closer look at the ZMX122 FX? Why not visit our Glasgow shop? If you would prefer to buy online we offer a fast dispatch and delivery service throughout the UK.
The Alto ZMX122FX Zephyr is an 8 channel mixer with effects.
Small yet powerful. The Zephyr range offers tremendous value for money. The Alto ZMX122FX has 8 channels. It also gives you a comprehensive range of effects. It has 256 24 bit DSP effects. These have been created in conjunction with Alesis. They include delays, reverb and more. You have plenty of Inputs and Outputs too. It will handle a wide variety of microphones. Dynamic and condenser as well as wireless. The Alto ZMX122 has four balanced XLR jack inputs. Two of these feature Phantom Power. On hand is plenty of connectivity for other instruments such as keyboards and guitars. This little mixer has a high headroom and low noise. Coloured dials and LEDs help you find your way around it in a darkened venue. It offers top performance at a budget price.
Product Details
- Product Code: ZEPHYR ZMX122FX
Mono channel (Ch. 1-4)
- Microphone Input Electronically balanced, discrete input configuration
- Frequency Response: 20 Hz to 22 kHz, +/-1 dB
- Distortion( THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: 0 dB to 50 dB (Mic)
- Maximum Voltage Gain: 70 dB Ch. Mic input → Main Mix out & Tape out, 80 dB Ch. Mic input → Control Room & Phones, 60 dB Ch. Mic input → Aux send
- SNR (Signal to Noise Rate): ≧110 dBu
- Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control
- Line Input: Electronically balanced
- Frequency Response: 20 Hz to 22 kHz, +/- 1 dB
- Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: 15 dBu to 35 dBu
Stereo channels (Ch. 5 - 8)
- Line Input Electronically balanced
- SNR (Signal to Noise Ratio): ≧110 dBu
- Frequency Response: 20 Hz to 22 kHz, +/-1 dB
- Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
- Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
- Maximum Voltage Gain: 20 dB FX Return → Main Mix out, 20 dB RCA Tape input → Main Mix out
Impedance
- Microphone Input 3.9 kOhms
- All Other Input: 10 kOhms or Greater
- Tape Out: 1 kOhms
- All Other Outputs: 120 Ohms
Equalization
- Mono channels High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
- Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
Alesis DSP Section
- A/D And D/A Converters 24-bit
- DSP Resolution: 24-bit
- Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations
- Presets: 256
- Controls: 16 x 16-position preset selector
- Crosstalk: Adjacent Input ≦-80 dB @ 1 KHz (Ch. 1-6) , Input to Output ≦-75 dB @ 1 KHz (Stereo L/R, Ch. 1-4, Pan panned hard left or right):
Main Mix Section
- Tape, Aux, Phones Output
- Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
- Noise (Bus Noise): ≦-90 dB @ 20 Hz ~ 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)
Power and Dims
- Power Supply 18 V, 500 mA
- Rated Power Consumption: 27 W
- Dimensions (WxLxH) 256mm x 250mm x 72mm
- Weight: 5.07 lb
